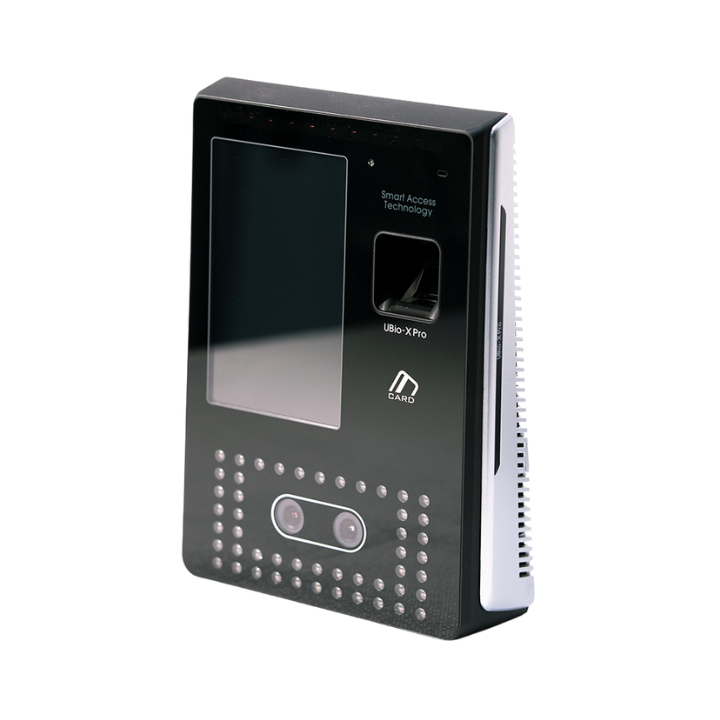

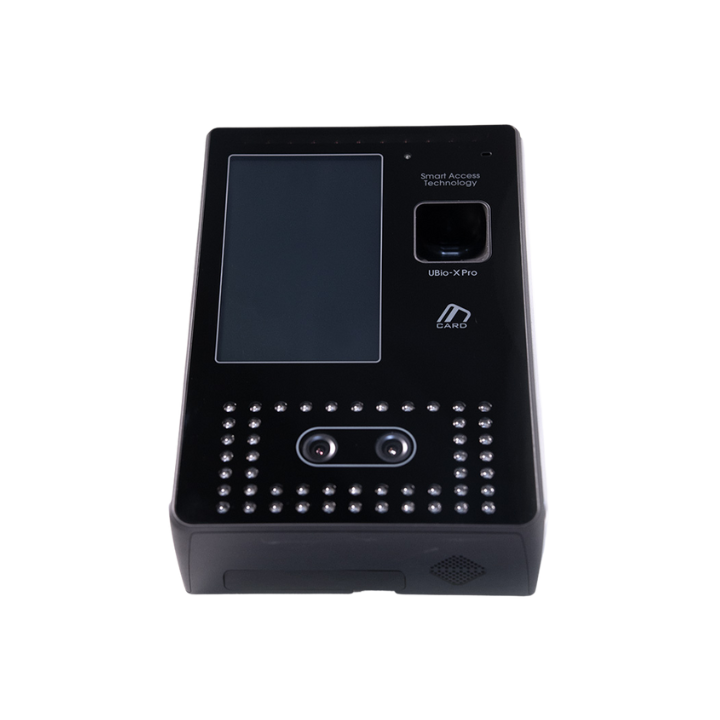

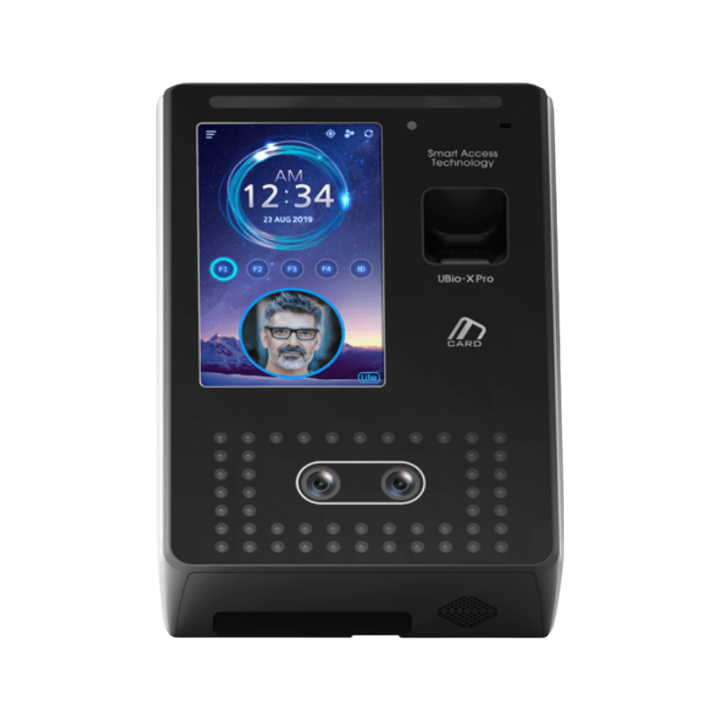

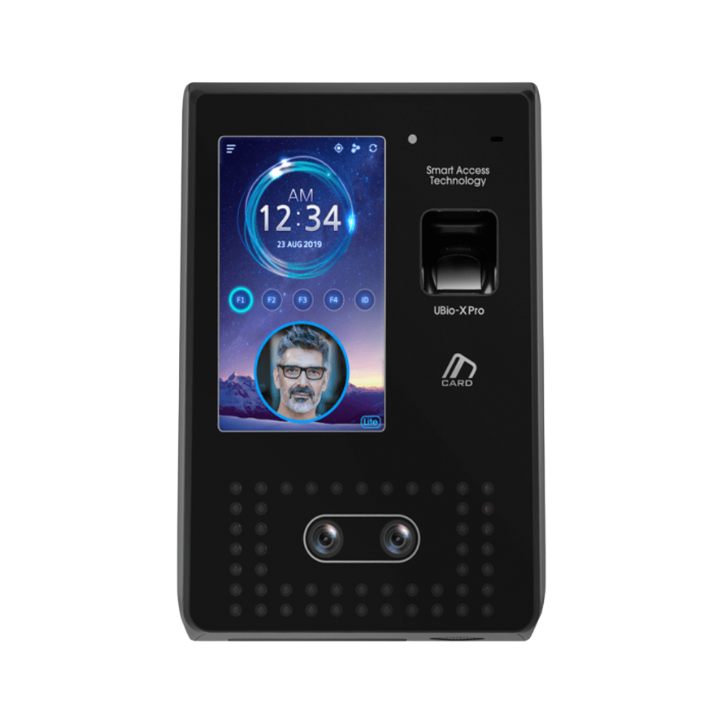

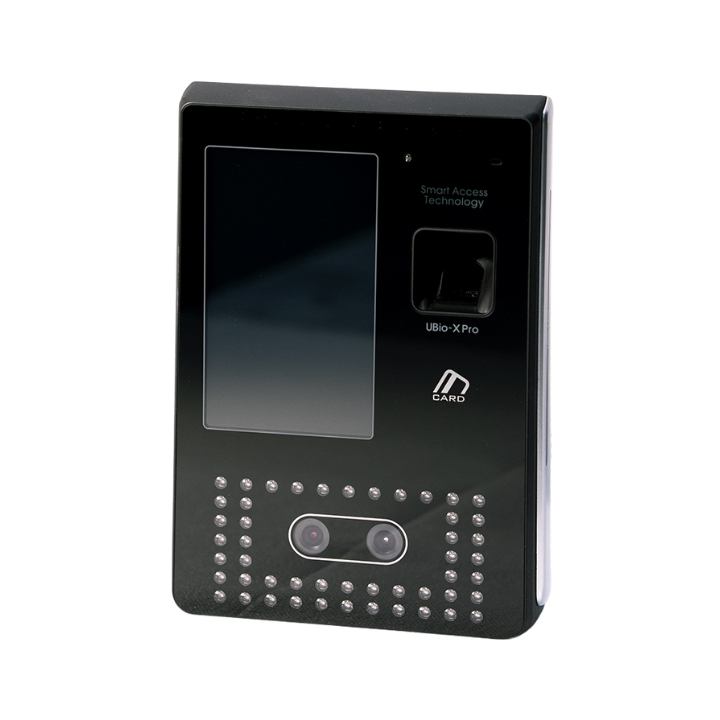

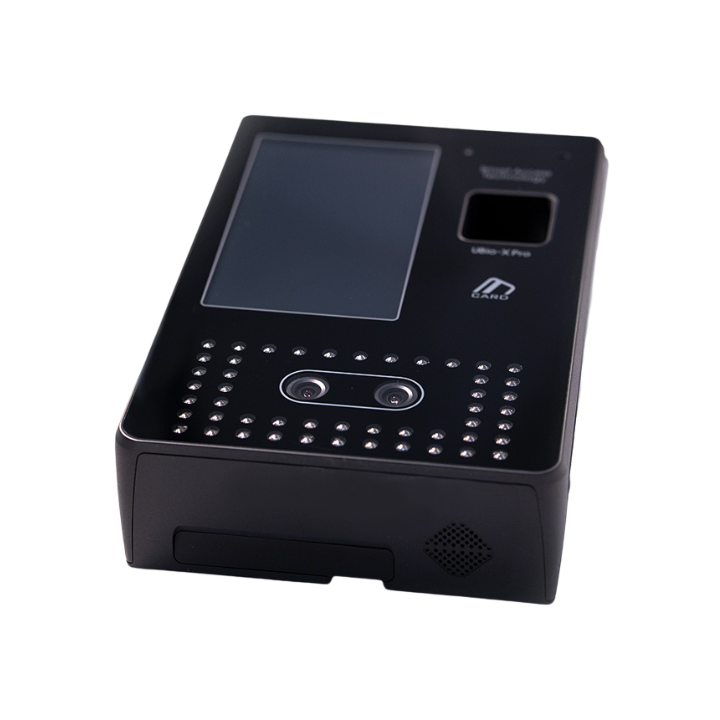

Virdi UBio-X Pro Lite — AI Face Recognition & Fingerprint Access Control Terminal in Pakistan
The Virdi UBio-X Pro Lite is a powerful multi-modal biometric access control and time attendance terminal from Virdi’s UBio-X series — combining AI facial recognition, fingerprint scanning, and the widest card credential support in the UBio-X range into a single comprehensive device. It recognizes faces from up to 3 meters using a dual-camera system with a 2MP CMOS sensor and integrated IR LED — delivering consistent, accurate recognition from bright outdoor sunlight to dimly lit interiors without any performance degradation.
The Virdi UBio-X Pro Lite sits between the Virdi UBio-X Face Pro and UBio-X Pro in the Virdi range — offering full HID card support (HID Prox and HID iCLASS), a larger fingerprint sensor at 15.5 × 19mm, and a higher user capacity of 500,000 — making it ideal for large enterprise environments and organizations with existing HID card infrastructure.
IOT Systems is the sole and authorized Virdi UBio distributor in Pakistan. Every Virdi UBio-X Pro Lite we supply is 100% genuine, factory-certified, covered by full manufacturer warranty from Virdi Korea, and supported by official firmware updates and manufacturer-backed technical assistance.
Important — No Dust/Water Resistance Rating
The Virdi UBio-X Pro Lite does not carry an IP dust or water resistance rating. It is designed for indoor installation only in climate-controlled environments. Do not install in outdoor, exposed, or humid locations. For outdoor installations, see the Virdi AC-2200 (IP65) or AC-2000 (IP65 + IK09).
UBio-X Pro Lite vs UBio-X Face Pro — Key Differences
| Feature | UBio-X Face Pro | UBio-X Pro Lite |
|---|---|---|
| CPU | 1.8GHz Quad-Core | 1.0GHz Quad-Core |
| Face Recognition Distance | 0.5m–2m | Up to 3m |
| Face Templates (1:N) | 30,000 | 35,000 |
| Max Users (Card) | 30,000 | 500,000 |
| HID Prox / iCLASS | ✗ | ✓ |
| FP Sensor Platen | Smaller | 15.5 × 19mm (larger) |
| IP Rating | IP65 | No rating (indoor only) |
| Dimensions | 92 × 200 × 21mm (ultra-slim) | 149.7 × 208 × 89.7mm |
The Virdi UBio-X Pro Lite offers larger capacity, HID card support, and wider face recognition distance. The UBio-X Face Pro is slimmer, faster CPU, IP65 rated, and more suited to modern office aesthetics. Contact IOT Systems for a recommendation based on your specific requirements.
Authentication Modes
Face Recognition: AI dual-camera face recognition from up to 3 meters. 2MP CMOS sensor with IR LED for superior illumination performance. Operates in conditions from 0 to 30,000 Lux. 35,000 face templates (1:N), 100,000 templates (1:1). Up to 10 face templates per user. Matches 35,000 templates in approximately 1 second.
Fingerprint: Large 15.5 × 19mm platen at 500 DPI. 1,000,000 fingerprint templates (1:1) and 200,000 (1:N). Patented fake fingerprint detection rejects gelatin, silicone, rubber, film, and paper artificial fingers. FRR 0.1% / FAR 0.0001%. Up to 2 templates per finger, 10 fingers per user.
RFID Cards — Widest Compatibility in UBio-X Range: EM 125kHz, HID Prox, HID iCLASS, and 13.56MHz smart cards — all four in one built-in multi-frequency reader. No adapter required. The widest card support in the UBio-X product range.
PIN Code: Touchscreen PIN entry via the 5-inch color touch LCD. Used standalone or combined with any other credential.
Key Features
Dual Camera with IR LED — 30,000 Lux Performance: The dual embedded camera system uses a 2MP CMOS sensor with integrated IR LED for superior background filtering. Performs consistently in full daylight (30,000 Lux) and near-darkness — eliminating recognition failures caused by changing light conditions between indoor and outdoor environments.
AI Face Recognition up to 3 Meters: Recognizes faces from up to 3 meters — wider than the UBio-X Face Pro (2m) — allowing users to be identified before they reach the terminal. Ideal for high-traffic lobbies, factory gates, and corridors where early identification improves throughput.
HID Prox & HID iCLASS Card Support: The only UBio-X terminal (alongside the UBio-X Pro) supporting HID Prox and HID iCLASS — making it directly compatible with existing HID card infrastructure in corporate offices, banks, and government buildings without replacing employee cards.
Massive 500,000 User Capacity: Supports up to 500,000 users via card — far exceeding the 30,000 card user capacity of the UBio-X Face Pro. Essential for large enterprise organizations, university campuses, and multi-site deployments with large workforce numbers.
Large Fingerprint Sensor — 15.5 × 19mm Platen: The larger platen area improves fingerprint capture accuracy, particularly for users with larger fingers or dry/aged skin — reducing false rejection rates in large-workforce environments where fingerprint quality varies across employees.
UBio Alpeta Cloud Management: Connects to UBio Alpeta for real-time attendance monitoring, automated payroll reports (SAP, Microsoft Dynamics 365, Power BI), per-user access control, multi-site management, and remote user enrollment.
Free SDK & API: IOT Systems provides the official Virdi UBio SDK and API free of charge — enabling integration with any HR, ERP, or payroll system as part of the installation service.
UBio Alpeta — Cloud Management Platform
The Virdi UBio-X Pro Lite connects to UBio Alpeta — Virdi’s official web-based access control and time attendance platform.
Real-Time Attendance — Monitor every access and attendance event live across all sites simultaneously.
Automated Payroll Reports — Export to Excel, SAP, Microsoft Dynamics 365, and Power BI automatically.
Access Level Control — Define which users access which doors at which times per individual or group.
Multi-Site Management — Manage terminals across Karachi, Lahore, Islamabad, and all branches from one dashboard.
Remote User Enrollment — Add or update credentials remotely without physically visiting each terminal.
Free SDK & API — Official Virdi UBio SDK and API provided free by IOT Systems with every deployment.
Who Uses the Virdi UBio-X Pro Lite in Pakistan?
Large Corporate Offices — 500,000 user capacity handles the largest enterprise workforce with HID card compatibility for existing infrastructure
Banks & Government Buildings — HID Prox and HID iCLASS support for organizations with established HID card systems
Manufacturing Plants — Large fingerprint sensor handles high-volume workforce authentication with varying fingerprint quality
Universities & Campuses — Massive user capacity and multi-modal authentication for students and staff
Hospitals & Healthcare — 3-meter face recognition allows early identification before users reach the terminal
Multi-Site Organizations — UBio Alpeta cloud platform manages all terminals across multiple locations centrally
High-Traffic Lobbies & Gates — Wide 3-meter recognition range enables early identification reducing congestion
Why Buy the Virdi UBio-X Pro Lite from IOT Systems?
Sole Authorized Distributor — The only genuine source of Virdi UBio products in Pakistan. No gray-market risk. No warranty void.
Full Manufacturer Warranty — Official Virdi Korea manufacturer warranty on every terminal.
Free SDK & API — Official UBio Alpeta SDK and API included at no extra cost with every deployment.
Certified Installation — Certified engineers install, configure, and commission across Karachi, Lahore, Islamabad, and all major cities.
Latest Firmware — Every terminal shipped with the latest official Virdi firmware.
After-Sales Support — Dedicated support for firmware updates, troubleshooting, system expansion, and training.
Download the official datasheet: [Virdi UBio-X Pro Lite Datasheet PDF]
Frequently Asked Questions — Virdi UBio-X Pro Lite
What is the difference between the UBio-X Pro Lite and UBio-X Face Pro?
The Pro Lite has a 1.0GHz CPU, recognizes faces up to 3m, supports 500,000 users and HID cards, and has a larger 15.5 × 19mm fingerprint sensor — but has no IP rating so is indoor only. The Face Pro has a faster 1.8GHz CPU, IP65 weatherproofing, ultra-slim 21mm design, and recognizes faces up to 2m — better for modern office aesthetics and outdoor-facing installations. Contact IOT Systems for a recommendation.
Does the UBio-X Pro Lite support HID cards?
Yes. The UBio-X Pro Lite supports EM 125kHz, HID Prox, HID iCLASS, and 13.56MHz smart cards — the widest card compatibility in the UBio-X range. This makes it compatible with existing HID card infrastructure without replacing employee cards.
Can the UBio-X Pro Lite be installed outdoors?
No. The UBio-X Pro Lite has no IP dust or water resistance rating and is designed for indoor installation only. For outdoor installations, choose the Virdi AC-2200 (IP65) or AC-2000 (IP65 + IK09 vandal-proof).
How many users can the UBio-X Pro Lite handle?
Up to 500,000 users via card, 100,000 face templates in 1:1 mode, and 35,000 face templates in 1:N mode. This is significantly larger than the UBio-X Face Pro (30,000 card users) — making the Pro Lite more suitable for large enterprise environments.
Does the UBio-X Pro Lite work offline without internet?
Yes. All templates, access rules, and event logs are stored locally. It operates completely independently without internet. When internet is available, data syncs automatically to UBio Alpeta.
Does IOT Systems install the UBio-X Pro Lite outside Karachi?
Yes. IOT Systems provides installation, UBio Alpeta configuration, and after-sales support across Pakistan — Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Hyderabad, Peshawar, and Quetta.
