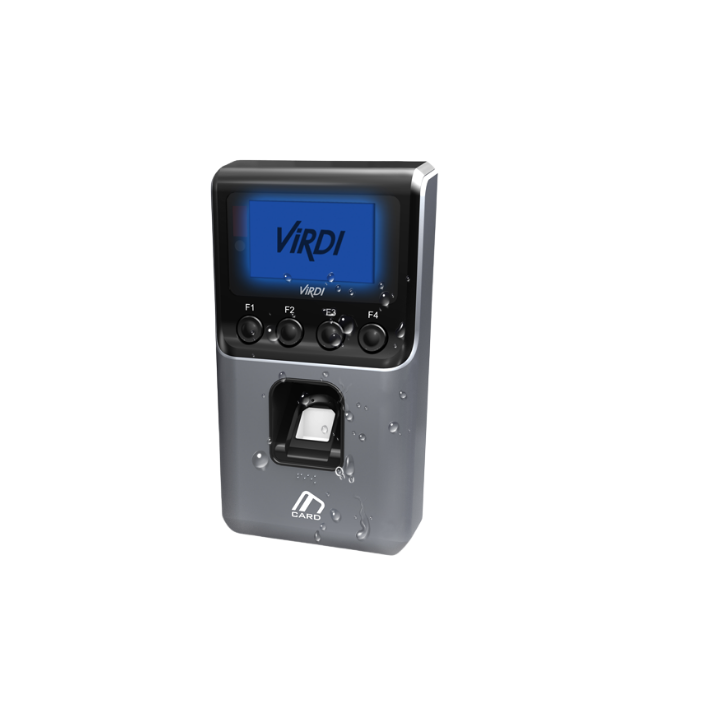

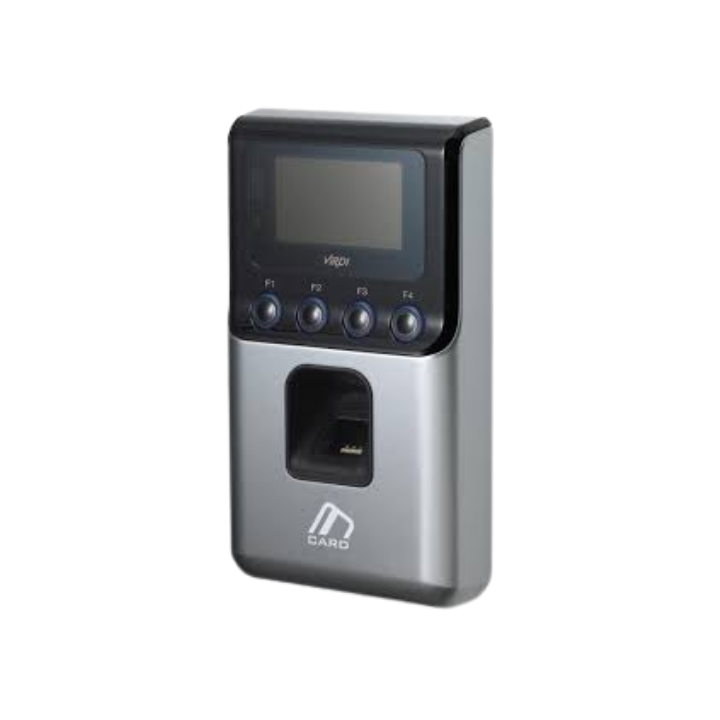

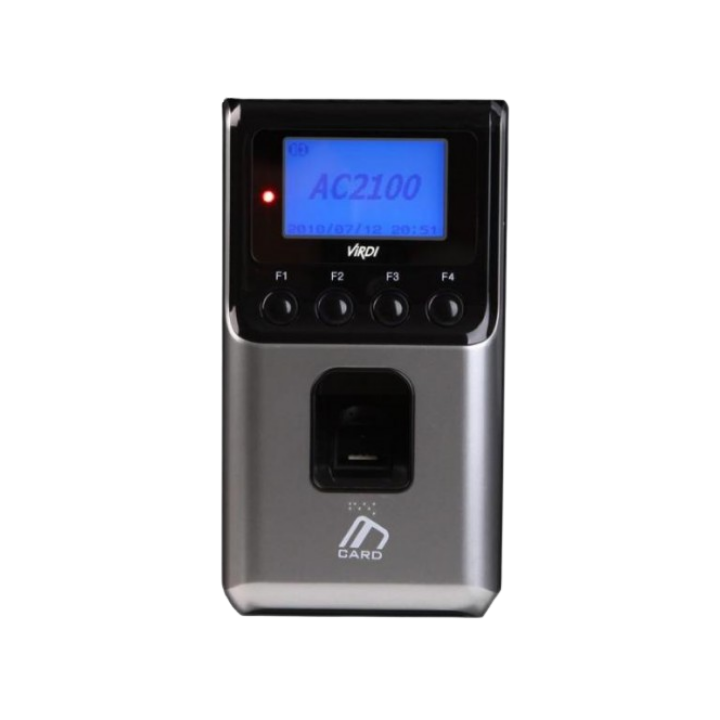

Virdi AC-2100 — Fingerprint & Card Access Control Terminal in Pakistan
The Virdi AC-2100 is Virdi’s entry-level professional fingerprint and card access control and time attendance terminal — the most cost-effective model in the AC series. It combines Virdi’s proven patented live fingerprint detection technology with OSDP-encrypted RS-485 communication, TCP/IP network connectivity, Wiegand IN/OUT for third-party panel integration, and a compact 58mm slimline form factor — delivering reliable, professional access control performance for indoor and sheltered installations at an accessible price point.
The AC-2100 is the right choice for organizations that need proven fingerprint and card access control for office doors, meeting rooms, internal secured areas, and sheltered entry points — where the full weatherproofing of the AC-2100 Plus or AC-2200 is not required, and where budget efficiency is a priority without compromising on biometric accuracy or communication security.
IOT Systems is the sole and authorized Virdi UBio distributor in Pakistan. Every AC-2100 we supply is 100% genuine, factory-certified, covered by full manufacturer warranty from Virdi Korea, and supported by official firmware updates and manufacturer-backed technical assistance.
Important — IPX3 vs IP65: Understanding the Difference
The Virdi AC-2100 carries an IPX3 water resistance rating — which means it is protected against dripping water and light splashing only. It is suitable for indoor installations and sheltered locations where it will not be directly exposed to rain, water jets, or submersion.
If your installation is fully outdoor or exposed to rain, dust, or direct water contact, the Virdi AC-2100 Plus (IP65) or Virdi AC-2200 (IP65) are the correct choices. Contact IOT Systems to confirm which model is right for your installation environment before purchasing.
Where the AC-2100 Sits in the Virdi AC Series
| Feature | AC-2100 | AC-2100 Plus | AC-2200 | AC-2000 |
|---|---|---|---|---|
| Water Protection | IPX3 (splash) | IP65 (waterproof) | IP65 (waterproof) | IP65 (waterproof) |
| IK09 Vandal-Proof | ✗ | ✗ | ✗ | ✓ |
| Bluetooth Mobile Key | ✗ | ✗ | ✓ | ✓ |
| Built-in Camera | ✗ | ✗ | ✓ | ✓ |
| PoE Support | ✗ | ✓ | ✗ | ✓ |
| HID Card Support | ✗ | ✗ | ✓ | ✓ |
| OSDP RS-485 | ✓ | ✓ | ✓ | ✓ |
| Event Logs | 100,000 | 100,000 | 100,000 | 51,000 |
The AC-2100 is the entry-level model — ideal for indoor and sheltered access points where full IP65 weatherproofing and advanced features like Bluetooth, camera, or PoE are not required.
Authentication Modes
Fingerprint Recognition: 500 DPI optical fingerprint sensor with 14.8 × 17.9mm platen area and 32-bit RISC CPU for fast, accurate processing. Up to 10,000 fingerprint templates (1:1) and 1,500 templates (1:N). FRR 0.1% / FAR 0.0001%. Virdi’s patented Live and Fake Fingerprint Detection rejects artificial fingers made from gelatin, rubber, silicone, paper, and film. Up to 2 templates per finger, 10 fingers per user. Optimized algorithm handles difficult fingerprints including dry or aged skin.
RFID Card: EM 125kHz proximity cards and 13.56MHz smart cards — both in one built-in reader. Note: HID Prox and HID iCLASS are not supported on this model.
PIN Code: 4 hardware function keys for PIN entry as standalone or combined with fingerprint or card for two-factor authentication.
Key Features
Patented Live & Fake Fingerprint Detection: Virdi’s patented optical sensor distinguishes live human skin from gelatin, rubber, silicone, film, and paper artificial fingers — FRR 0.1% / FAR 0.0001% accuracy with a 32-bit RISC CPU for fast matching.
OSDP RS-485 Encrypted Communication: RS-485 using OSDP (Open Supervised Device Protocol) — encrypted and tamper-detected communication between reader and controller. Cannot be intercepted unlike standard Wiegand. Raises an alarm if cable is cut or tampered with.
TCP/IP Network Connectivity: Connects to the UNIS management software via standard TCP/IP network for centralized user management, time attendance reporting, and access level control.
Wiegand IN & OUT: Wiegand OUT sends credential data to third-party access control panels. Wiegand IN receives data from external readers. This makes the Virdi AC-2100 compatible with virtually all access control panels deployed in Pakistan.
Compact 58mm Slimline Form Factor: Same slim 58 × 187.9 × 51.6mm profile as all AC series models — fits on standard door frames and interior wall surfaces without requiring special mounting hardware.
Virdi MCP-040 Compatible: Fully compatible with the Virdi MCP-040 multi-door control panel for centralized multi-door deployments managed from a single UNIS installation.
IPX3 Water Resistance: Protected against dripping water and light splash from any direction — suitable for indoor installations and sheltered locations. Not suitable for exposed outdoor installations — use AC-2100 Plus (IP65) for outdoor deployments.
UNIS Software — Centralized Management
The AC-2100 is managed via UNIS — Virdi’s dedicated access control and time attendance software for the AC series.
User Management — Add, remove, and manage cardholders and fingerprint templates across all connected terminals from one PC.
Time Attendance Reports — Automated shift reports, overtime calculations, and payroll exports for HR and finance.
Access Level Control — Time zones, access groups, and door restrictions per user or group.
Real-Time Monitoring — View live door events and access logs as they happen.
MCP-040 Integration — Manage multi-door deployments via Virdi MCP-040 from a single UNIS installation.
Who Uses the Virdi AC-2100 in Pakistan?
Small & Medium Offices — Single-door and multi-door indoor access control with time attendance reporting
Internal Office Doors — Meeting rooms, server rooms, manager offices, and restricted departments
Schools & Colleges — Staff room, office, and lab access control with automated attendance
Clinics & Small Hospitals — Indoor staff access control and attendance for small healthcare facilities
Retail & Commercial Spaces — Back office and storage area access control for staff
Residential Buildings — Indoor lobby and common area access control
Government Offices — Departmental door access control for indoor office environments
Small Industrial Facilities — Indoor factory access control where full outdoor weatherproofing is not required
Why Buy the Virdi AC-2100 from IOT Systems?
Sole Authorized Distributor — The only genuine source of Virdi UBio products in Pakistan. No gray-market risk. No warranty void.
Full Manufacturer Warranty — Official Virdi Korea manufacturer warranty on every terminal.
Expert Installation — Certified engineers install, configure, and commission across Karachi, Lahore, Islamabad, and all major cities.
UNIS Software Setup — Full UNIS software installation, configuration, and user enrollment as part of every deployment.
Latest Firmware — Every terminal shipped with the latest official Virdi firmware.
After-Sales Support — Dedicated support for firmware updates, troubleshooting, and system expansion.
Download the official datasheet: [Virdi AC-2100 Datasheet PDF]
Frequently Asked Questions — Virdi AC-2100
What is the difference between the Virdi AC-2100 and AC-2100 Plus?
The AC-2100 has IPX3 splash-resistant housing — suitable for indoor and sheltered installations only. The AC-2100 Plus upgrades to full IP65 weatherproofing (dustproof and waterproof) and adds PoE support for single-cable installation — making it suitable for outdoor and exposed locations. Both have identical fingerprint performance, OSDP RS-485, and 100,000 event log capacity. If your installation is outdoor or exposed, the AC-2100 Plus is the correct choice.
What does IPX3 mean on the AC-2100?
IPX3 means the terminal is protected against dripping water and light splashing from angles up to 60 degrees. It is suitable for indoor use and sheltered locations where the terminal will not be directly exposed to rain, water jets, or dust. For fully outdoor or exposed installations, choose the Virdi AC-2100 Plus (IP65) or AC-2200 (IP65).
Does the AC-2100 support HID cards?
No. The AC-2100 supports EM 125kHz proximity cards and 13.56MHz smart cards only. HID Prox and HID iCLASS are not supported. If HID card support is required, contact IOT Systems for an alternative recommendation.
What is OSDP and why is it better than Wiegand?
OSDP (Open Supervised Device Protocol) encrypts all communication between the reader and access controller — Wiegand transmits in plain text and can be intercepted. OSDP also provides tamper detection — if the cable is cut or tampered with, the system raises an immediate alarm.
Can the AC-2100 work in a multi-door deployment?
Yes. Multiple AC-2100 terminals can be connected via TCP/IP to a PC running UNIS software for centralized multi-door management. For expanded relay outputs and door control, the Virdi MCP-040 multi-door controller is fully compatible with the AC-2100.
Does IOT Systems install the AC-2100 outside Karachi?
Yes. IOT Systems provides AC-2100 installation, UNIS software setup, and after-sales support across Pakistan — Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Hyderabad, Peshawar, and Quetta.
