Virdi UBio-X Tag

SKU: X Tag



Need Help? Call Us +92 333 2251798
Monday - Saturday 9:00 - 17:00

Description

Virdi Access Control UBio-X Tag Features

Secured by Design, Just Tag Virdi UBio-X Tag

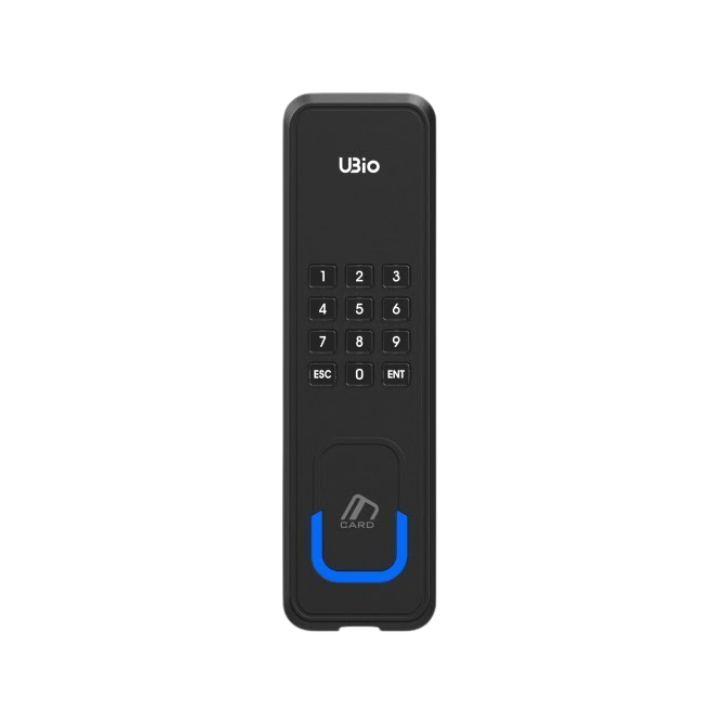

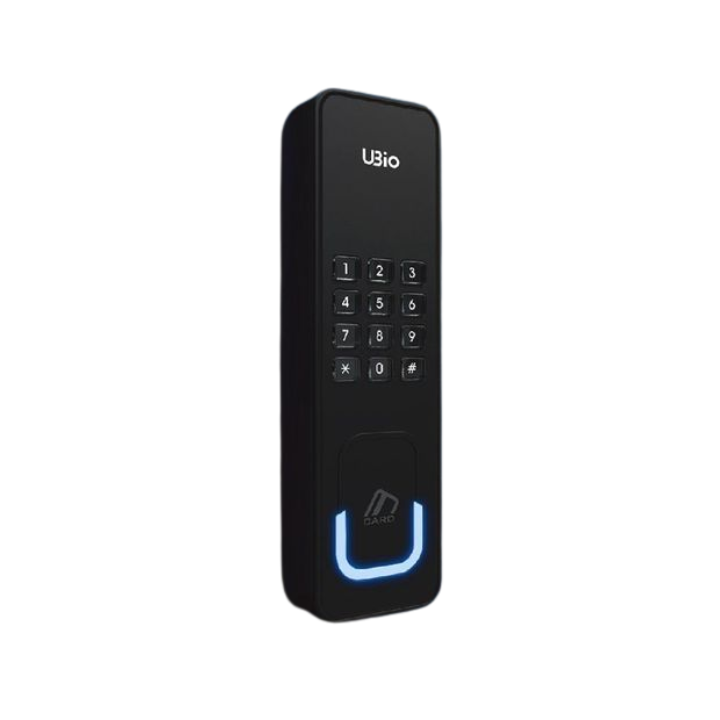

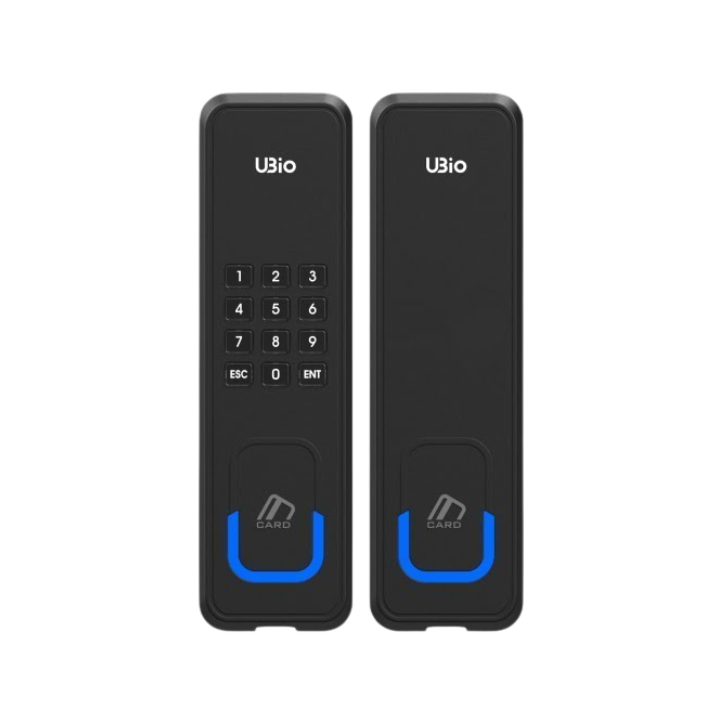

Virdi UBio-X Tag is a compact yet powerful RFID reader access control terminal designed to deliver high security in a small form factor.

Virdi UBio-X Tag RFID Reader Access Control Terminal

The UBio-X Tag is a slim RFID reader access control terminal built for reliability and security. Its sleek design, strong security architecture, and rugged durability ensure dependable operation in both indoor and outdoor environments.

Virdi UBio-X Tag Offers Multiple Card Authentication

Virdi UBio-X Tag supports multiple RFID card technologies including MIFARE, DESFire, HID, Suica, and more. It also supports mobile authentication through NFC and BLE, enabling a wide range of credential options in a single terminal. This flexibility allows seamless integration with both existing and new security systems.

Stronger Security and Greater Scalability with Virdi UBio-X Tag

Virdi UBio-X Tag securely connects controllers and devices using bi-directional encryption based on the international OSDP v2 standard. End-to-end encryption ensures complete data protection from card to server.

Virdi UBio-X Tag Slim and Smart Design

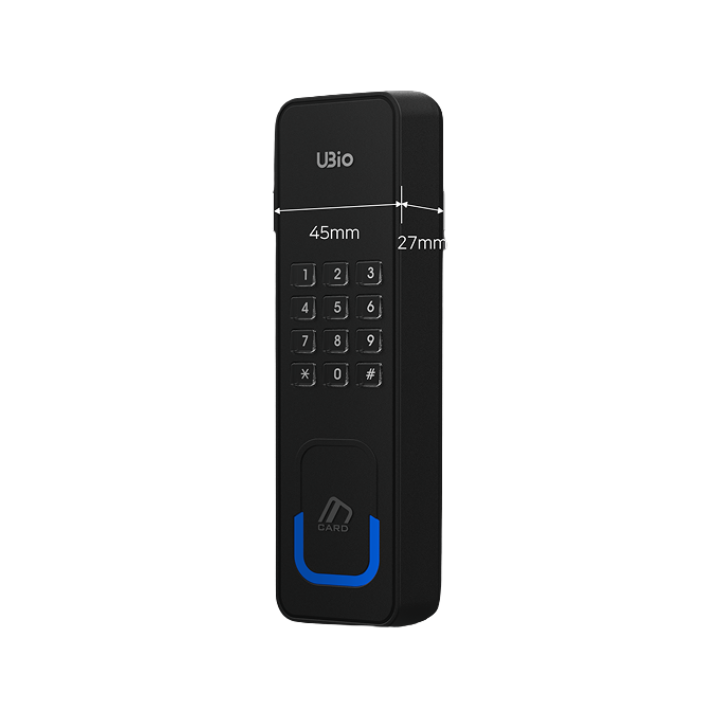

Featuring a simple and user-centered design, Virdi UBio-X Tag is easy to use and install. Its slim 45 mm compact body fits thin door frames, narrow doorways, and glass doors without restriction.

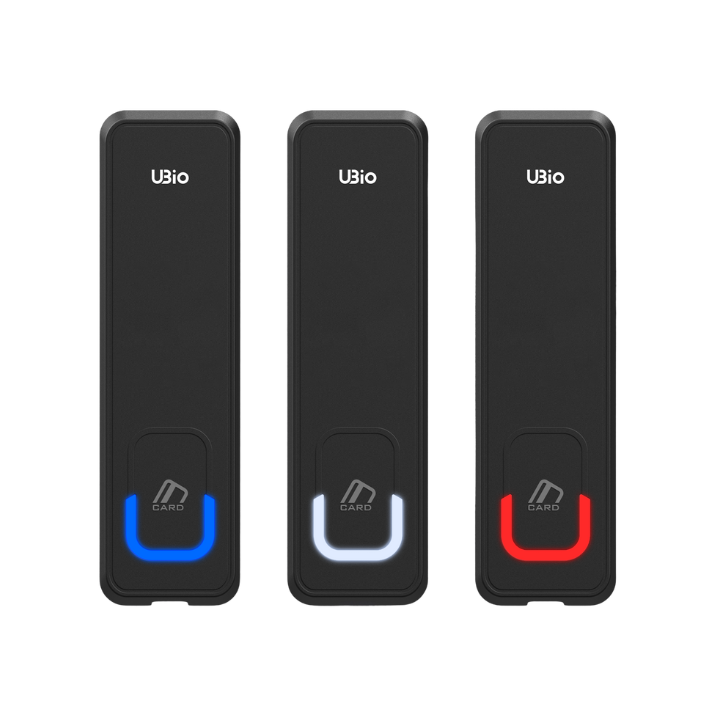

The U-shaped status light displays device status using three intuitive colors for clear visual feedback. Virdi UBio-X Tag Ruggedized for Any Environment Designed to meet international standards, Virdi UBio-X Tag carries IP67 water and dust resistance and an IK08 shock rating. It operates reliably in harsh environments, from dusty construction sites to extreme outdoor conditions.

Easy Installation with One Cable Only on Virdi UBio-X Tag

With Power over Ethernet (PoE) support, Virdi UBio-X Tag allows power and network connectivity through a single cable. This enables quick installation and removal without complex wiring.

One UBio-Link App for Easy Management of Virdi UBio-X Tag

Virdi UBio-X Tag can be easily managed using the dedicated UBio-Link mobile application. From user registration to device configuration, all management tasks can be performed through a single app, improving operational efficiency without the need for a PC.

Virdi UBio-X Tag Offers Flexible Scalability for Different Environments

Virdi UBio-X Tag can operate as a standalone terminal or be paired with controllers or servers for larger deployments. It scales smoothly from small offices to enterprise-level environments with thousands of users.

Virdi UBio Access Control and Time Attendance Distributor in Pakistan

The sole distributor of Virdi UBio in Pakistan is IOT Systems. We are authorized partners with Virdi UBio and have successfully completed numerous projects with them.

Maximum number of users 400,000
Text logs 1,000,000
Card Module (SC/RF Dual) 13.56MHz Smart Card Reader (ISO14443A/B, Mifare, Felica, ISO15693), SEOS (Optional), DesFire (EV1/EV2/EV3 Optional), SAM slot
125kHz RF Card Reader (Module), EM, HID Prox (Optional)
Mobile NFC / BLE
Keypad Physical Keypad
Waterproof/Dustproof IP65 / IP67
Vandalism prevention IK08
CPU ARM Cortex-A7 Dual-core 1.2 GHz
Memory 4GB eMMC + 256MB RAM
LED Multicolor (tricolor) – White, Blue, Red
Operating temperature -20℃ to +60
Humidity 0% to 95
Weight 200 grams (keypad 202 grams)
Size (W × H × D) 45 × 157 × 27 mm
Temper Support
Ethernet 10/100 Mbps
RS-485 1ch (select master/slave)
PoE Support
Relay 2ch
In 2ch (1ch Optional)
Virdi UBio-X Tag Datasheet
Virdi UBio-X Tag User Manual
