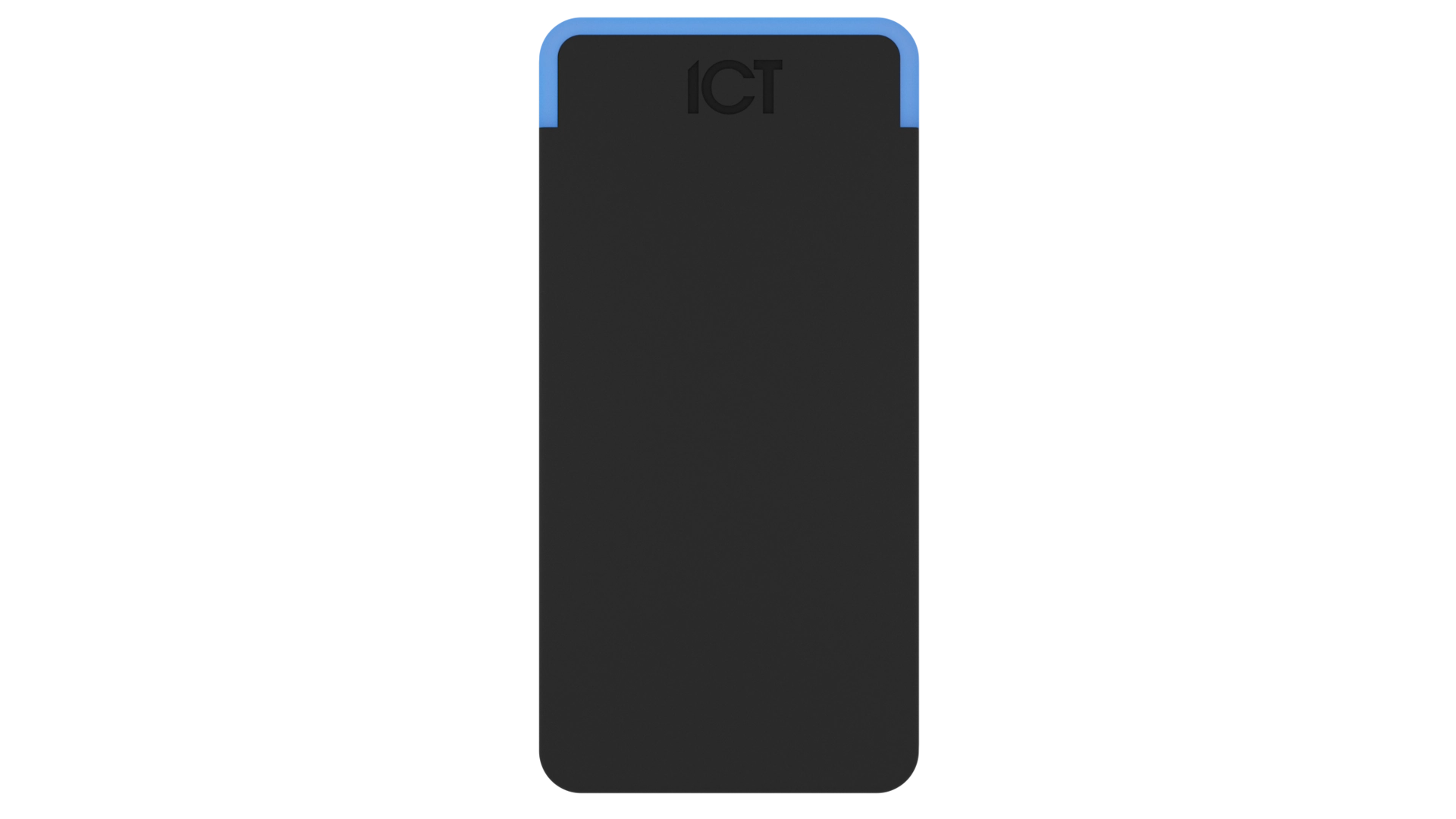

TSL Mini RFID Card Reader

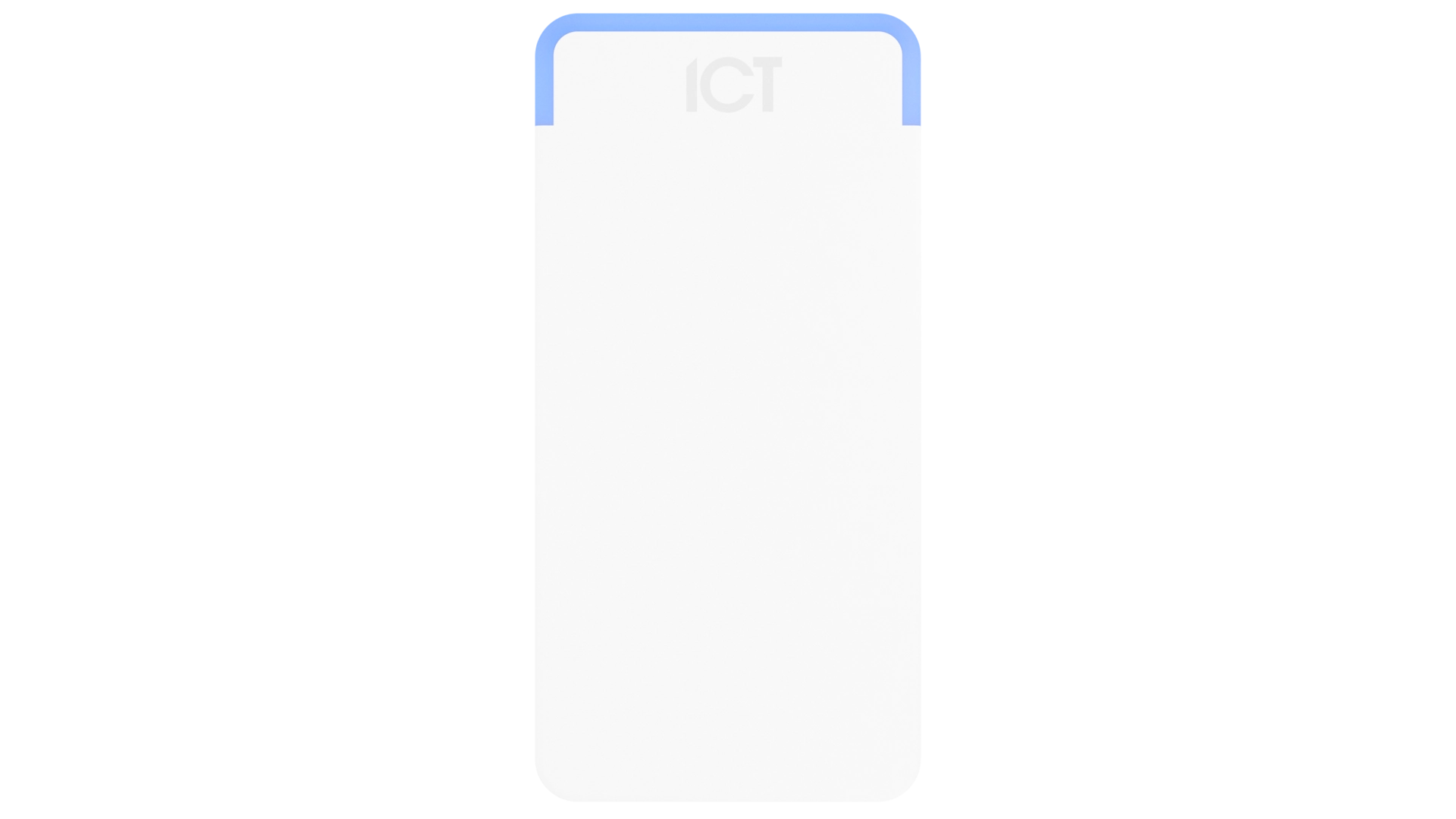

TSL Mini RFID Card Reader - Image 2

TSL Mini RFID Card Reader



Need Help? Call Us +92 333 2251798
Monday - Saturday 9:00 - 17:00

Description

TSL Mini RFID Card Reader in Pakistan

The TSL Mini RFID Card Reader is the smallest and most cost-effective member of the TSL access control family in Pakistan. Despite its compact size, it delivers powerful multi-technology support and advanced security features, making it ideal for modern access control systems where space and design matter.

Its unobtrusive design allows it to be installed in a wide range of environments, including offices, commercial buildings, residential complexes, and secure facilities without affecting aesthetics or installation constraints.

Multi-Technology Card Support

The TSL Mini RFID Card Reader supports multiple card technologies from a single device, ensuring compatibility with both legacy and modern access control systems.

  • DESFire smart card support
  • MIFARE card compatibility
  • 125kHz proximity card support
  • Single-reader multi-technology functionality

Advanced Wireless & Mobile Credentials

The device supports modern authentication methods including Bluetooth and NFC-based credential reading, enabling mobile access control solutions for future-ready security systems.

  • Bluetooth credential authentication
  • NFC mobile access support
  • Flexible digital identity integration

Secure Communication & Encryption

The TSL Mini RFID Card Reader is designed with advanced security protocols to ensure safe and encrypted communication in access control systems.

  • OSDP secure channel communication
  • 125kHz PSK and G-Prox II support
  • Secure Access Module (SAM) for key protection
  • Custom encryption keys for MIFARE and DESFire

These features provide strong protection against unauthorized access and data manipulation in secure environments.

Smart Configuration & LED Indication

The reader includes advanced configuration options and visual indicators to enhance usability and system feedback.

  • Programmable via Protege Config App
  • 16-color LED status strip
  • Intelligent tamper detection (keep-alive transmission)

These features make system setup and monitoring more efficient for installers and administrators.

Durable & Weather-Resistant Design

The TSL Mini RFID Card Reader is fully encapsulated and designed for both indoor and outdoor environments. With an IP65 protection rating, it offers strong resistance against dust, water, and environmental conditions.

Its compact housing ensures long-lasting durability even in high-usage security installations.

  • IP65-rated weather protection
  • Indoor and outdoor installation support
  • Fully sealed compact design
  • High durability for continuous operation

Performance & Read Range

The TSL Mini RFID Card Reader offers a read range of up to 50mm (1.97 inches) using ISO proximity cards, ensuring fast and reliable authentication.

Its efficient design ensures stable performance even in high-traffic access control environments.

Applications of TSL Mini RFID Card Reader

The TSL Mini RFID Card Reader is widely used in secure access control systems across multiple industries in Pakistan.

  • Corporate offices and workplaces
  • Residential and apartment buildings
  • Banking and financial institutions
  • Commercial and retail facilities
  • Government and secure installations
  • Industrial security systems

Compact Access Control Solution in Pakistan

The TSL Mini RFID Card Reader provides a powerful combination of compact design, advanced security features, and multi-technology support, making it ideal for modern access control systems in Pakistan.

It is widely deployed in Karachi, Lahore, Islamabad, Faisalabad, and other major cities for professional-grade security and authentication solutions.

Ordering Information
Order Codes See available models
Power Supply
Operating Voltage 12VDC (9.5 to 14VDC)
Operating Current 165mA (Peak, Reading)
Communications
Card Read Range MIFARE: 50mm (1.97"), DESFire EV1 ISO: 5mm (0.2"), DESFire EV2 ISO: 25mm (0.98"), DESFire EV3 ISO: 20mm (0.79"), 125kHz Clamshell: 45mm (1.78") *
Tag Read Range MIFARE: 25mm (0.98"), DESFire EV1: 5mm (0.2"), DESFire EV2: 5mm (0.2"), DESFire EV3: 10mm (0.39"), 125kHz: 25mm (0.98") *
Wiegand Interface Multiple format 26, 34, or 37, customizable; Bit data 0 and data 1, sent at 1kHz
Frequency 13.56 MHz ISO/IEC 14443 Type A; 125kHz carrier with modulation formats supported *
Multi Conductor Cable RS-485: Belden 9842 or equivalent (max 900m / 3000ft)
Wiegand: 22 AWG alpha 5196, 5198; 18 AWG alpha 5386, 5388 (max 150m / 492ft)
OSDP Communication OSDP standard 2.2 with Secure Channel Protocol
Bluetooth Wireless Technology
Bluetooth Read Range Proximity mode: up to 0.5m (1.6ft) configurable
Action unlock (shake): up to 5m (16.4ft) configurable
Bluetooth Technology Bluetooth 5.1 compliant, AES-128 encrypted proprietary protocol
Credentials identified by unique site code and card number
Bluetooth Device Protege Mobile 1.0.x
NFC
NFC Read Range Up to 60mm
NFC Technology Android 4.4+, ISO7816-4 support, AES-256 encrypted DESFire credentials
Secure proprietary credential system
NFC Device Protege Mobile 1.0.x
Operating Conditions
IP Rating IP65
Operating Temperature UL/cUL -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)
Storage Temperature -10° to 85°C (14° to 185°F)
MTBF 520,834 hours (RFD 2000 UTE C 80-810)
Dimensions
Reader Dimensions (H x W x D) 87 x 43 x 9.5mm (3.4 x 1.7 x 0.37")
Weight
Reader Weight Net: 40g (1.4oz) / Gross: 90g (3.2oz)
