Suprema BioEntry W3

SKU: BioEntry W3



Need Help? Call Us +92 333 2251798
Monday - Saturday 9:00 - 17:00

Description

Suprema Access Control BioLite W3 Features

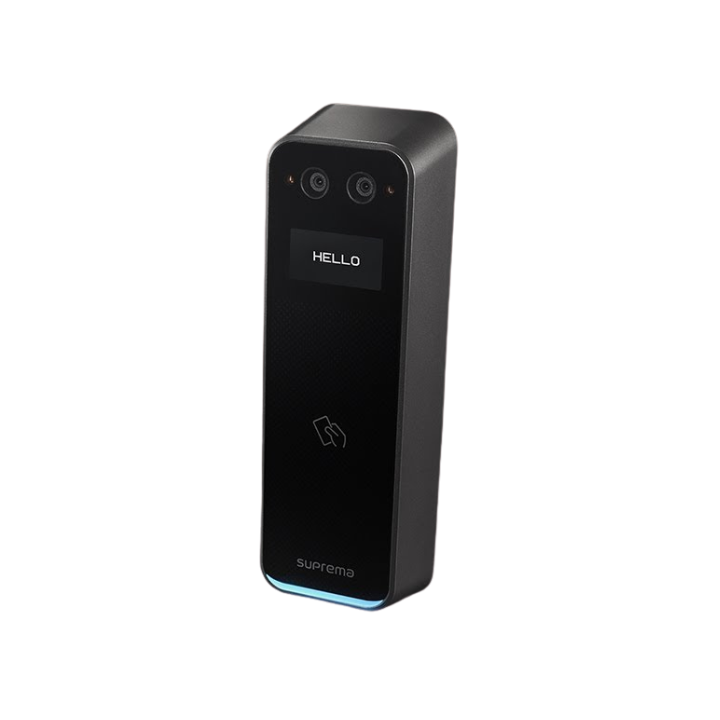

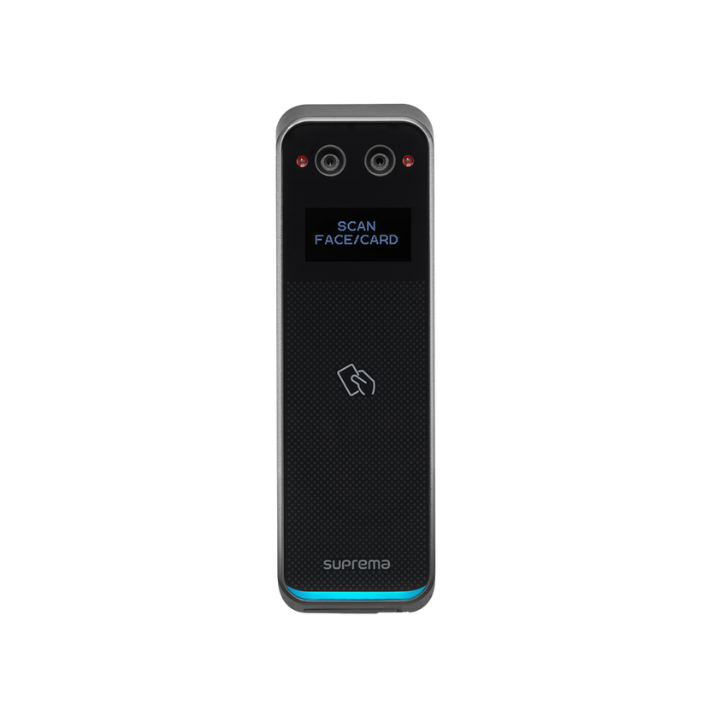

Suprema BioEntry W3 is Simple, Durable, Secure, and AI-Powered Facial Authentication Device

Suprema BioEntry W3 is an innovative facial authentication access control device powered by Suprema’s advanced AI technology. Its AI processor, optimized with deep-learning (NPU), ensures high accuracy and lightning-fast facial processing speeds. Designed for both durability and resilience, BioEntry W3 withstands external impacts and extreme conditions, all while maintaining a slim and compact profile. Experience the future of security with a device that prioritizes secure private data, elegant simplicity, and lasting durability.

Secure Private Data offered by Suprema BioEntry W3

Suprema BioEntry W3 addresses data privacy concerns in biometric devices with its innovative security feature. Template on Mobile (ToM) lets users authenticate access through their mobile devices, ensuring that facial templates are never stored on any external systems.

Certifications held by Suprema BioEntry W3

Suprema BioEntry W3 holds key certifications including ISO/IEC 27001, ISO/IEC 27701, NIS2 Compliance, and GDPR Compliance, which confirm its top-tier security in data protection.

Simple Design by Suprema BioEntry W3

Suprema BioEntry W3 features a minimalist design that is both visually appealing and sophisticated. Its clean lines and straightforward user experience eliminate unnecessary complexity. With its ultra-slim profile, BioEntry W3 seamlessly integrates into any environment, including mullion-type installations on door frames,
where it fits perfectly without compromising aesthetics.

Durable Build by Suprema BioEntry W3

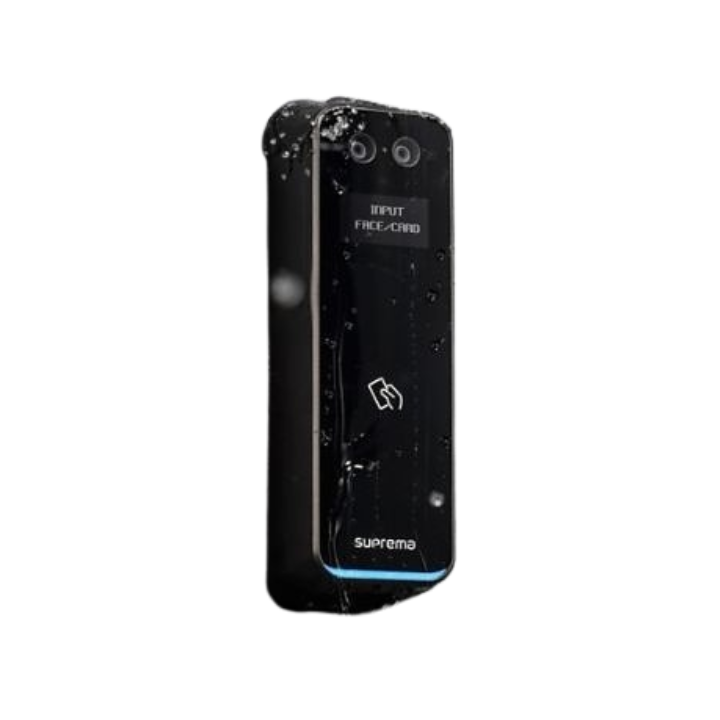

Suprema BioEntry W3 is durable and built to last. It can withstand prolonged use and tough conditions without losing its integrity or functionality. Suprema BioEntry W3 is vandal-proof with IK08 and ingress-proof with IP67.

Unmatched Performance by Suprema BioEntry W3 Offering the Future of Security

Suprema BioEntry W3 is highly efficient and effective in its functionality. It delivers strong, reliable performance, capable of handling demanding tasks with ease. Suprema BioEntry W3 comes with an AI deep-learning algorithm, on-device embedded NPU, and offers the fastest face matching speed of 0.2 seconds with a maximum of 30,000 face template storage.

Suprema Access Control and Time Attendance Distributor in Pakistan

The authorized distributor of Suprema in Pakistan is IOT Systems. We are authorized partners with Suprema and have successfully completed numerous projects with them.

Specification Category BEW3-DB BEW3-APB
Credential Face Face
RF Options 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FeliCa 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FeliCa, iCLASS SE/SR/Seos
RF Read Range MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm MIFARE/DESFire/EM/iCLASS: 50 mm, FeliCa/HID Prox: 30 mm
Mobile Card NFC, BLE NFC, BLE
IP Rating IP67 IP67
IK Rating IK08 IK08
Authentication Distance 0.3–1.0 m 0.3–1.0 m
Authentication Height 1.4–1.9 m 1.4–1.9 m
Matching Speed ≤0.2 sec ≤0.2 sec
Live Face Detection Supported Supported
Max Users (no credential) 100,000 100,000
Max Credentials (1:N) Face: 30,000; Card: 100,000 Face: 30,000; Card: 100,000
Max Credentials (1:1) Face: 30,000; Card: 100,000 Face: 30,000; Card: 100,000
Max Text Logs 1,000,000 1,000,000
Max Image Logs 10,000 10,000
CPU 1.5 GHz Quad Core 1.5 GHz Quad Core
Memory 16 GB Flash + 2 GB RAM 16 GB Flash + 2 GB RAM
Crypto Chip Supported Supported
Display 1.3” PMOLED 1.3” PMOLED
Camera IR 2M + Visual 2M pixels IR 2M + Visual 2M pixels
LED Multi-color Multi-color
Sound 16-bit 16-bit
Operating Temp. -20 °C ~ 50 °C -20 °C ~ 50 °C
Storage Temp. -40 °C ~ 70 °C -40 °C ~ 70 °C
Operating Humidity 0 % ~ 80 % (non-condensing) 0 % ~ 80 % (non-condensing)
Storage Humidity 0 % ~ 90 % (non-condensing) 0 % ~ 90 % (non-condensing)
Weight (Device) 283 g 291 g
Weight (Bracket) 36 g 36 g
Dimensions (WxHxD) 50 x 160 x 34.15 mm 50 x 160 x 34.15 mm
Certifications CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE, EAC, TELEC Same
Ethernet Supported (10/100 Mbps, auto MDI/MDI-X) Supported (same)
Network Protocols TCP, UDP TCP, UDP
RS-485 1-ch Master/Slave, OSDP V2 Same
Inputs / Outputs 1 Input / 1 Output Same
Relay 1 1
USB USB 2.0 (Type-C, Firmware only) USB 2.0 (Type-C)
USB Expansion Port Supported Supported
PoE Not supported Supported (IEEE 802.3at)
Tamper Supported Supported
Power 12 Vdc (max 1.0 A) or 24 Vdc (max 0.6 A) Same
Suprema BioEntry W3 Datasheet
