Nuveq EP-3000C
Nuveq EP-3000C - Image 2

Nuveq EP-3000C

SKU:EP-3000C



Need Help? Call Us +92 333 2251798
Monday - Saturday 9:00 - 17:00

Description

Nuveq Access Control EP-3000C Features

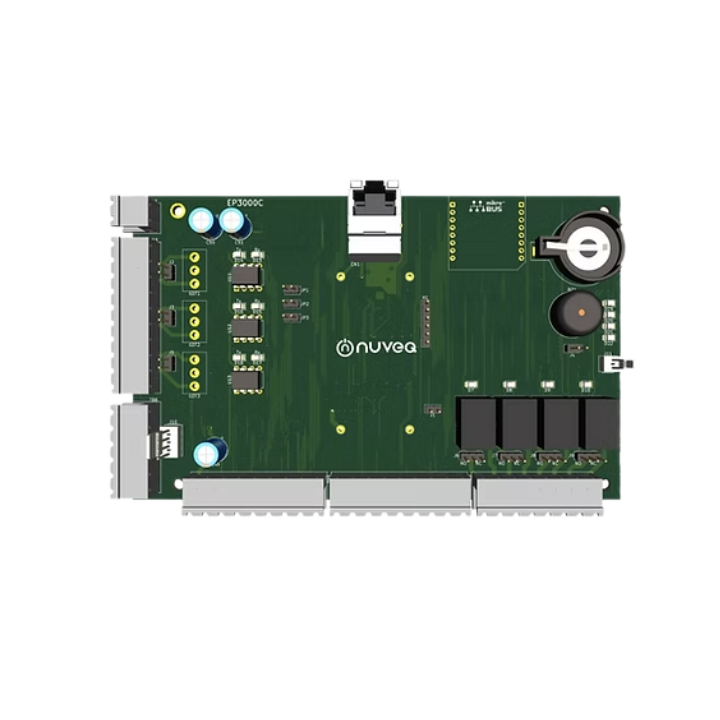

Nuveq EP-3000C Smart IOT Access Control

Nuveq EP-3000C IoT-powered Physical Access Controller delivers intelligent, secure, scalable and cloud-managed access management for enterprises.

Nuveq EP-3000C Smart IOT Controller

Nuveq EP-3000C Smart IoT Controller is an advanced access control system that combines the power of the Internet of Things (IoT) with modern security technology. This device provides an intelligent and automated solution for managing access to facilities, enhancing security and convenience. Nuveq Smart IoT Controller combines robust access control technology with a user-friendly cloud-based management platform that offers a simple, secure, and scalable way to manage access to facilities and doors across your organization.

Secure Device Identification with Nuveq EP-3000C

Nuveq EP-3000C offers unique identification by MAC Address, and ethernet connectivity with Dynamic IP and no on-site configuration.

Nuveq EP-3000C can manage Access from Anywhere

Nuveq EP-3000C can be used as Remote based Access Control, users can manage door access from anywhere using smartphones or computers, eliminating the need to be physically present.

Scale your System Effortlessly with Nuveq EP-3000C

Nuveq EP-3000C can easily expandable, and IoT controllers can be easily expanded to include additional doors or entry points without significant changes to the existing infrastructure.

Over-the-Air (OTA) Updates with Nuveq EP-3000C

Nuveq EP-3000C always up to date itself automatically, and receives the latest firmware and features seamlessly, ensuring your system is always secure and current.

Nuveq Access Control and Time Attendance Distributor in Pakistan

The Sole & Authorized Distributor of Nuveq in Pakistan is IOT Systems. We are the authorized partners with Nuveq and have done numerous projects with them.

Controller ARM Cortex M4 controller
Core Clock 150 MHz
Program Flash Memory 1MB
SRAM 192KB
Input Voltage 12VDC, 3A
Ethernet 10/100 Ethernet Port, IEEE802.3
IP Configuration Dynamic IP from DHCP server
MAC Address Guaranteed globally unique MAC address
Network Configuration No individual network configuration required for every controller
Network Protection ESD protection on Network port pins
Realtime Clock Battery backed (CR2032) with 5 years memory retention
Card Users 130,000 users
Transaction Buffer 130,000 transactions
Access Levels 65,535 levels
Weekly Time Zones 256
Daily Time Sets 256 sets, each with 4 intervals
Serial Ports 3 × RS485 serial ports (surge, over-voltage, ground fault protected)
Card Reader Ports 2 × Wiegand card reader ports (26/34/44 bit)
4 × Serial reader support for extended/custom functions
Additional Features Onboard buzzer for troubleshooting and local indication
Resettable fuse protection on incoming power supply and card reader ports
Inputs 2 Door sensor inputs
2 REX pushbutton inputs
4 General purpose inputs
Buffered inputs for high noise immunity
Expandable with EP-16IO board up to 256 inputs
Outputs 4 Relay outputs (NO/NC selectable)
2 Card reader LED outputs
2 Card reader buzzer outputs
Expandable with EP-16IO board up to 256 outputs
Operation Modes Single door mode – Entry and Exit reader / pushbutton
Two door mode – Entry reader and Exit pushbutton
Two door mode – Entry and Exit readers for both doors
Elevator mode – Expandable up to 80 floors with EP-16IO board
Barrier mode – Turnstile, flap barrier or carpark applications
Enclosure Size 320(W) × 290(H) × 78(D) mm
PC Board Size 162(W) × 101(H) × 25(D) mm
Expansion Options Serial expansion boards
Nuveq EP-3000C Datasheet
