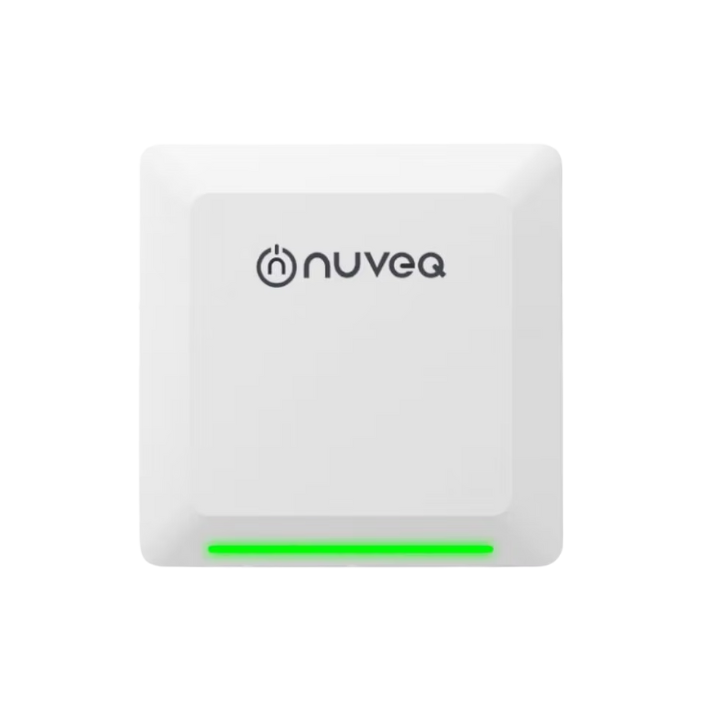

Nuveq EP-1000C
Nuveq EP-1000C - Image 2

Nuveq EP-1000C

SKU: EP-1000C



Need Help? Call Us +92 333 2251798
Monday - Saturday 9:00 - 17:00

Description

Nuveq Access Control EP-1000C Features

Nuveq EP-1000C Smart IOT Access Control

Nuveq EP-1000C IoT-powered Physical Access Controller delivers intelligent, secure, scalable and cloud-managed access management for enterprises.

Nuveq EP-1000C Smart IOT Controller

Nuveq EP-1000C Smart IoT Controller is an advanced access control system that combines the power of the Internet of Things (IoT) with modern security technology. This device provides an intelligent and automated solution for managing access to facilities, enhancing security and convenience. Nuveq Smart IoT Controller combines robust access control technology with a user-friendly cloud-based management platform that offers a simple, secure, and scalable way to manage access to facilities and doors across your organization.

Secure Device Identification with Nuveq EP-1000C

Nuveq EP-1000C offers unique identification by MAC Address, and ethernet connectivity with Dynamic IP and no on-site configuration.

Nuveq EP-1000C can manage Access from Anywhere

Nuveq EP-1000C can be used as Remote based Access Control, users can manage door access from anywhere using smartphones or computers, eliminating the need to be physically present.

Scale your System Effortlessly with Nuveq EP-1000C

Nuveq EP-1000C can easily expandable, and IoT controllers can be easily expanded to include additional doors or entry points without significant changes to the existing infrastructure.

Over-the-Air (OTA) Updates with Nuveq EP-1000C

Nuveq EP-1000C always up to date itself automatically, and receives the latest firmware and features seamlessly, ensuring your system is always secure and current.

Nuveq Access Control and Time Attendance Distributor in Pakistan

The Sole & Authorized Distributor of Nuveq in Pakistan is IOT Systems. We are the authorized partners with Nuveq and have done numerous projects with them.

MCU ARM Cortex M33 Trust Zero MCU
Core Clock 200 MHz
Program Flash Memory 2MB
SRAM 640KB
Input Voltage 12VDC, 3A
Ethernet Port 10/100 Ethernet Port, IEEE802.3
IP Configuration Dynamic IP from DHCP server
MAC Address Guaranteed globally unique MAC address
Network Configuration No individual network configuration required for every controller
Network Protection ESD protection on Network port pins
Realtime Clock Supercapacitor backup for time keeping if controller is switched off
Time Sync Automatic SNTP synchronization with timezone and DST correction
Card Users 10,000 users
Transaction Buffer 20,000 transactions
Storage Up to 64Mb high-endurance storage with 100-year data retention
Access Levels 65,535 levels
Weekly Time Zones 256
Daily Time Sets 256 sets, each with 4 intervals
Serial Ports 1 × RS485 serial port (surge, over-voltage, ground fault protected)
Card Reader Ports 2 × Wiegand ports (26/34/44 bit)
Serial Reader Support 4 × Serial readers for extended/custom functionality
Inputs 1 Door sensor input
1 REX pushbutton input
3 General purpose inputs
2 Power supply status inputs
1 Tamper input
Buffered inputs for high noise immunity
Outputs 3 × Relay outputs (NO/NC selectable)
1 × Card reader LED output
1 × Card reader buzzer output
Operation Modes Single door mode – Entry and Exit reader / push button
Two door mode – Entry reader and Exit push button
Two door mode – Entry and Exit readers for both doors
Barrier mode – Turnstile, flap barrier or carpark applications
Enclosure Size 320(W) × 290(H) × 78(D) mm
PC Board Size 111(W) × 101(H) × 25(D) mm
Additional Features Onboard buzzer for troubleshooting and indication
Resettable fuse protection on power supply and card reader ports
Certifications MySTI, CE, UKCA, RoHS



Nuveq EP-1000C Datasheet
