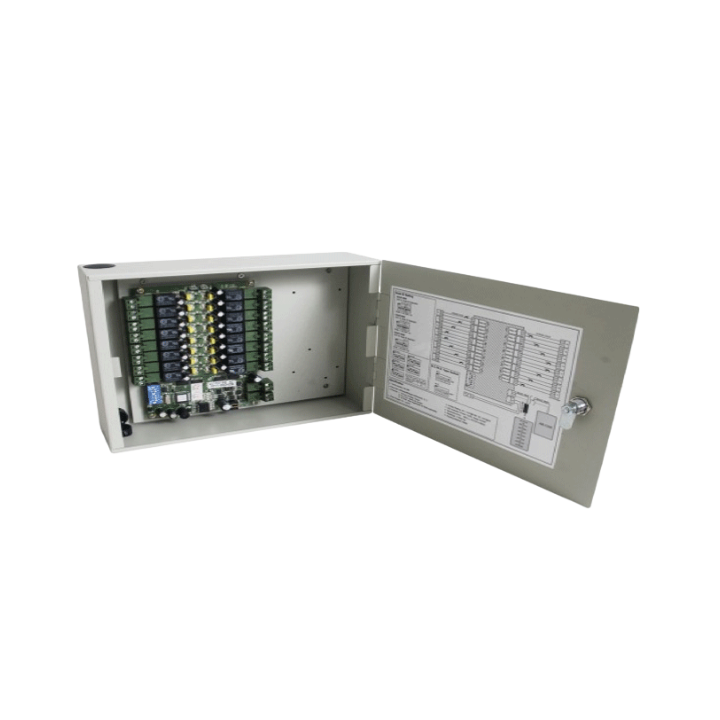

Virdi Elevator Controller

SKU:ELEVATOR CONTROLLER



Need Help? Call Us +92 333 2251798
Monday - Saturday 9:00 - 17:00

Description

Virdi Access Control Elevator Controller Features

Access up to 64 Floors by Virdi Elevator Controller

Virdi Elevator Controller provides access to up to 64 floors in a single elevator.

Virdi Elevator Controller Provides 16 Output Relay

The Virdi Elevator Controller provides 16 relay outputs per module.

Multiple Authentication Types by Virdi Elevator Controller

Virdi Elevator Controller offers integration with multiple authentication types including Card, Face, and Finger recognition.

Securing Areas by Virdi Elevator Controller

Virdi Elevator Controller provides access control via Time Zones, Access Areas, and User-Based Access Control.

Virdi Elevator Controller with Multiple Applications

Virdi Elevator Controller can be used with multiple applications including locker control.

Virdi UBio Access Control and Time Attendance Distributor in Pakistan

The Sole Distributor of Virdi UBio in Pakistan is IOT Systems. We are the authorized partners with Virdi UBio and have completed numerous projects with them.

Communication RS-485 Power Supply +9 ~ +24VDC
Baud rate Selectable Contact Rating AC: 110V@0.6A, DC: 24V@2A
Weight(g) 1,780 ±10g LED Indicator Power, Tx/Rx, Relay On/Off
Channels 1. 16 Form C Relay Output
2. N.O./N.C. select via Jumper
Dimension 180(L) × 231(W) × 62(H) mm
    Housing Material Metal
Virdi Elevator Controller Datasheet
