Description

#1 Zycoo SQ10-B SIP-Enabled Square IP Speaker in Pakistan

Zycoo SQ10-B: Versatile Two-Way Audio for Smart Buildings

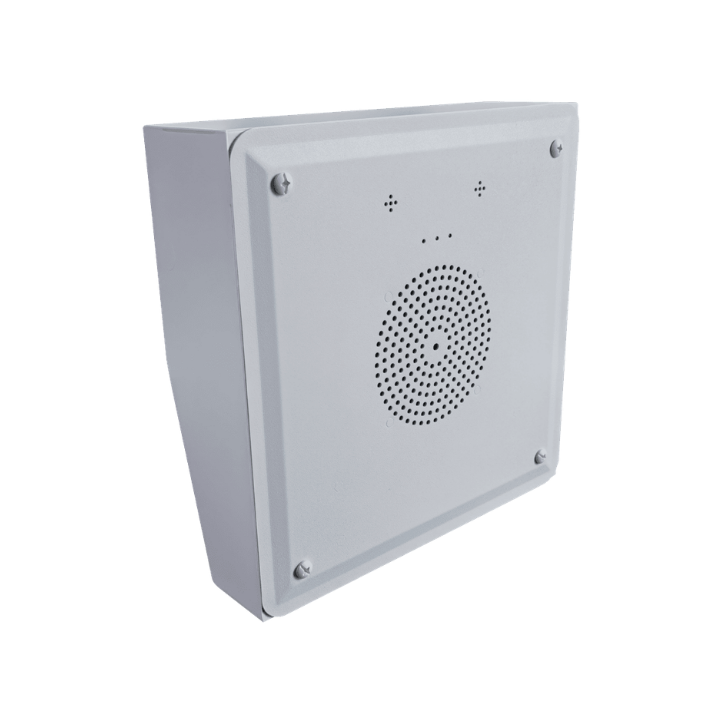

The Zycoo SQ10-B Network Square Speaker is a high-performance SIP endpoint designed for clear voice paging and interactive communication. Featuring a 4.5-inch full-range driver and a sensitive built-in microphone, the SQ10-B provides a reliable two-way audio solution for classrooms, libraries, and corporate offices.

As a robust component of a Zycoo public addressable system, it supports PoE+ (IEEE 802.3at) for simplified installation and consistent 10W audio delivery across any indoor environment.

Full-Duplex Talkback & Emergency Assistance

Equipped with an omni-directional microphone, the Zycoo SQ10-B enables instant two-way talkback. When integrated with an external call button, users can immediately connect with security or administrative personnel. This makes it an essential tool for emergency reporting and real-time assistance in public zones.

Industrial Durability & Diverse Mounting

Manufactured by Zycoo, the SQ10-B is built with a cold-rolled steel casing finished in textured white epoxy. It supports versatile mounting options, including vertical wall-mount and angled installation, ensuring optimal sound dispersion (90°H x 50°V) for areas up to 30m².

HD Audio Standards & Peripheral Integration

The SQ10-B supports high-definition audio codecs like G.722 and Opus, ensuring crystal-clear intelligibility. For advanced security, it features dry contact I/O ports to trigger external strobe lights or alarm sensors and is fully compatible with ONVIF-supported Video Management Software (VMS).

Official Zycoo SQ10-B Distributor in Pakistan – IOT Systems

IOT Systems is the Sole Distributor of Zycoo in Pakistan. We specialize in large-scale Zycoo IP intercom and paging installations in Pakistan, offering nationwide support and genuine technical warranties.

Visit our offices in Karachi, Lahore, or Islamabad for expert advice on choosing between the SQ10-B and the screen-enabled SQ10-T for your facility’s communication needs.

Build-in Microphone O
LCD Screen X
Speaker Component 4.5" Full Range Driver Unit
Max Sound Pressure Level 101dB
Sensitivity 91dB/1m/1W
Call Button 2x Keys + 2x Key LEDs
Dry Contact Max AC125V-1A/DC60V-1A
Power Input PoE IEEE802.3at /DC24V-2A
Audio Codecs G.722, G.711 A-law, G.711 U-law, G.729
Approvals EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, FCC Part 15B Class B
Zycoo SQ10-B Datasheet
